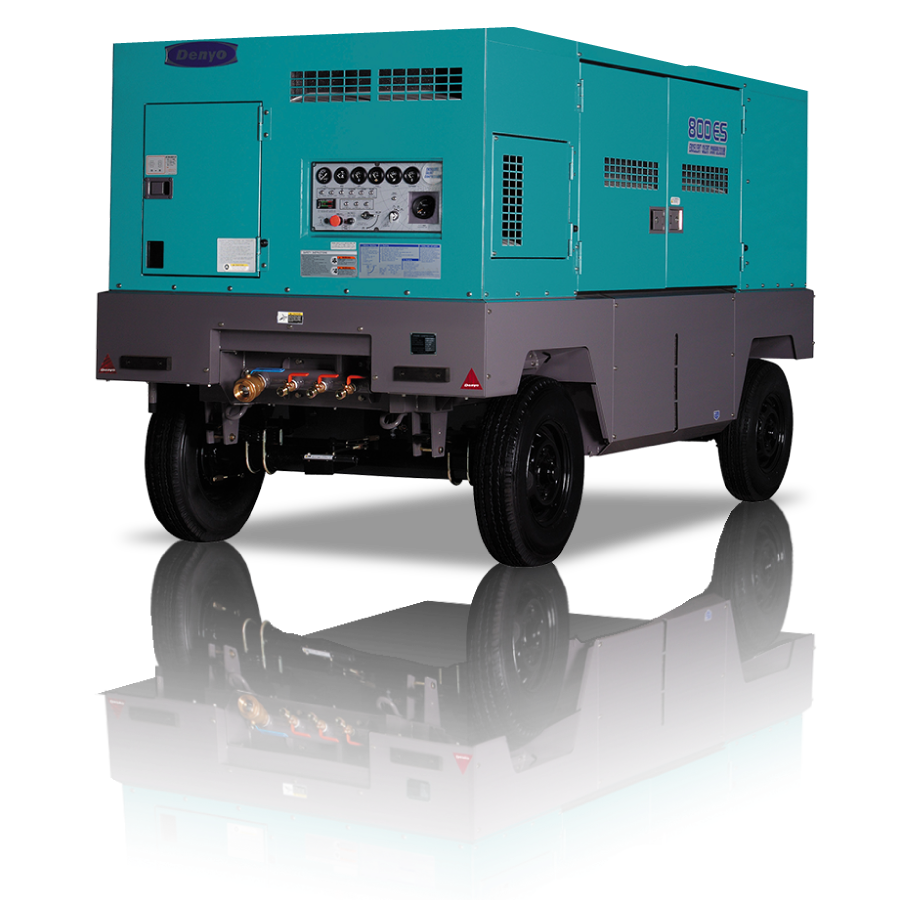

DIS-800ESS
- Trailer-mounted design enables fast site mobility
- Stable airflow supports heavy-duty pneumatic tools
- Integrated parking brakes enhance towing safety control
- Rugged build ensures reliable long-term performance
Share to
Specifications Table
| Compressor | |
|---|---|
| Type | Rotary Screw, Single-Stage Compression, Oil Cooled |
| Delivered Air Pressure (MPa) | 0.69 (100) |
| Free Air Delivery m³/min(cfm) | 22.7 (800) |
| Lube Oil Capacity (L) | 100 |
| Receiver Tank Capacity (m³) | 0.27 |
| Service Cock (Size x Q’ty) | 20A x 3, 50A x 1 |
| Engine | |
| Maker & Model | Hino J08C-UT |
| Type | Direct-injected, Turbocharged |
| No. of Cylinders-Bore x Stroke (mm) | 6-114 × 130 |
| Displacement (L) | 7.961 |
| Rated Output | 144.5 (197) |
| Rated Speed (rpm) | 2100 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Tank Capacity (L) | 350 |
| Fuel Consumption (L/h) | [19.7] 25.6 |
| Lube Oil Capacity (L) | 25.5 |
| Coolant Capacity (L) | 25 |
| Battery x Quantity | 145F51 x 2 |
| Unit | |
| Length (mm) | 3900 |
| Width (mm) | 1600 |
| Height (mm) | 2035 |
| Dry Weight (kg) | 3140 |
| Trailer: No. of Tires x Tire Size | F:175R-14-8PR / R:205/80R15-8PR |
| Sound Level | |
| 7m dB (A) | 72 |
