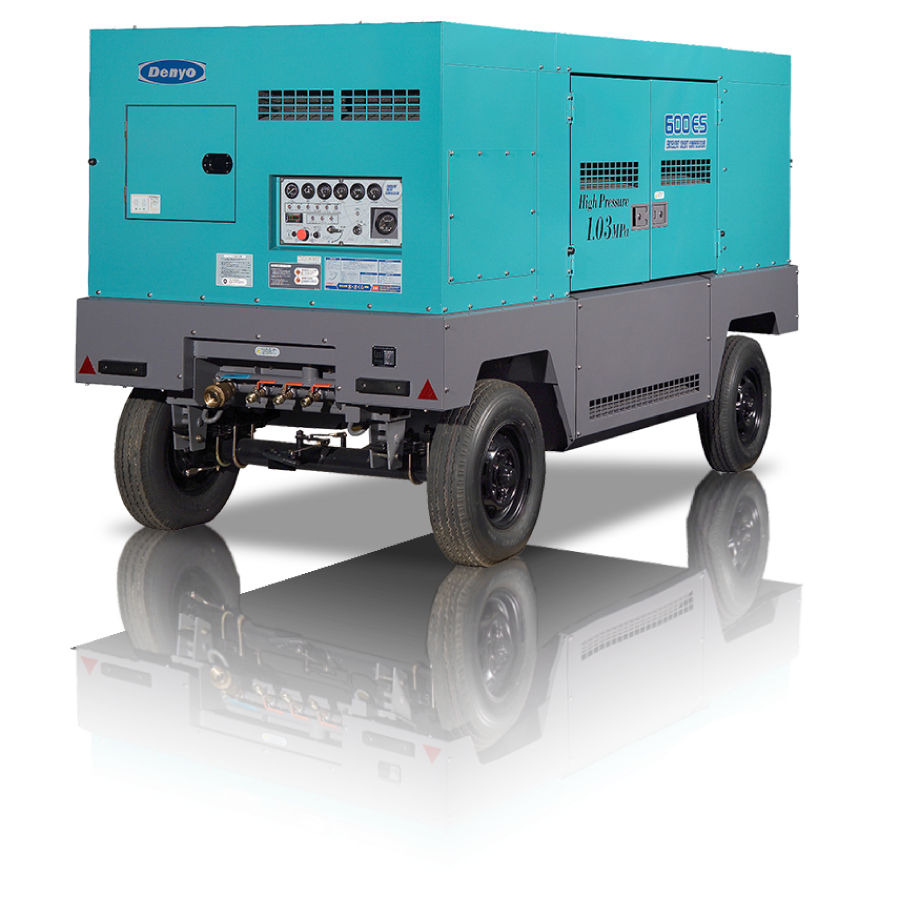

DIS-600EHS
- High-pressure airflow supports heavy industrial use
- Reliable airflow powers heavy-duty pneumatic equipment
- Efficient engine helps reduce daily fuel use
- Durable construction withstands tough worksite conditions
Share to
Specifications Table
| Compressor | |
|---|---|
| Type | Rotary Screw, Single-Stage Compression, Oil-Cooled (DIS-1070XS: Two-Stage Compression) |
| Delivered Air Pressure (MPa) | 1.03 (150) |
| Free Air Delivery m³/min(cfm) | 17 (600) |
| Lube Oil Capacity (L) | 95 |
| Receiver Tank Capacity (m³) | 0.186 |
| Service Cock (Size x Q’ty) | 20A x 3, 50A x 1 |
| Engine | |
| Maker & Model | Hino J08C-UT |
| Type | Direct-injected, Turbocharged |
| No. of Cylinders-Bore x Stroke (mm) | 6-114 × 130 |
| Displacement (L) | 7.961 |
| Rated Output | 138 (188) |
| Rated Speed (rpm) | 1900 |
| Fuel | ASTM No.2 Diesel Fuel or Equivalent |
| Fuel Tank Capacity (L) | 280 |
| Fuel Consumption (L/h) | [21.4] 25.8 |
| Lube Oil Capacity (L) | 25.5 |
| Coolant Capacity (L) | 25 |
| Battery x Quantity | 145F51 x 2 |
| Unit | |
| Length (mm) | 3830 |
| Width (mm) | 1600 |
| Height (mm) | 2035 |
| Dry Weight (kg) | 3130 |
| Trailer: No. of Tires x Tire Size | F:175R-14-8PR / R:205/80R15-8PR |
| Sound Level | |
| 7m dB (A) | 70 |
